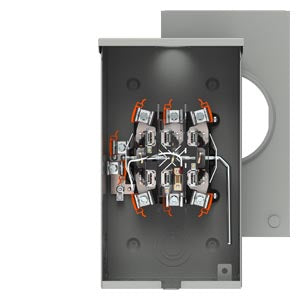

44307-02CV, Commercial Meter Socket
$1,517.58
- Meter Mounting Equipment
- Type Ringless
- Service Type Overhead/Underground
- Circuit Configuration 3-Phase 3-Wire
- Voltage Rating 600 VAC
- Current Rating 200 Ampere
- Bypass Switch Type Lever
- Number of Jaws 7
- Hub Type 4.281 Inch HD Closing Plate
- Knockouts (6) (2 Inch-2-1/2 Inch-3 Inch) Concentric Knockout
- Wire Size 6 AWG to 350 KCMIL (Line/Load)
- Enclosure NEMA 3R
- Enclosure Material 16/14 Gauge Light Gray Baked Polyester Powdered G90 Galvanized Steel
- Size 13 Inch W x 5.2 Inch D x 19 Inch H
- Approval UL 414, UL 486B
- Applicable Standard ANSI C12.7
- Application Commercial
