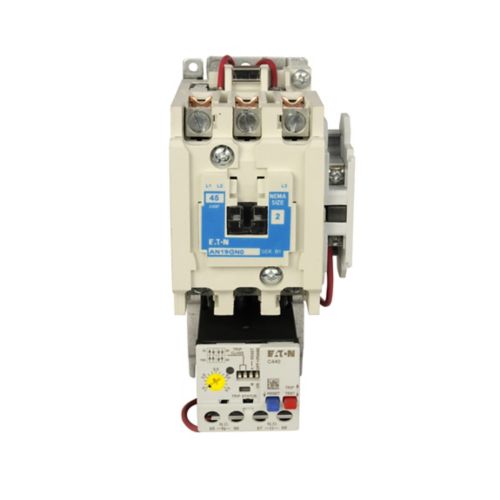

New AN19GN0A5E045 Eaton AN19GN0A5E045 Starter
Eaton AN19GN0A5E045 Starter
Specifications :
• Series: Freedom
• Amperage: 45
• Poles: 3
• Mounting Type: Panel
• MPN: AN19GN0A5E045
• Voltage: 600VAC
• Phase: 3
• Connection Type: Screw
• Protection: Magnetic
• For Use With: Freedom Series Motor Control Systems
• Application: Electrical Assemblies, Panels and EOEMs
• Coil Volts: 110VAC at 50Hz, 120VAC at 60Hz
• Contact Configuration: 1 NO
• Nema Size: 2
• Includes: Class 20 Solid State Ambient Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
• Action: Non-Reversing
• Size: 7.1"H x 2.6"W x 4.98"D
• Approval: UL, CSA, CE, NEMA
• Standards: RoHS
