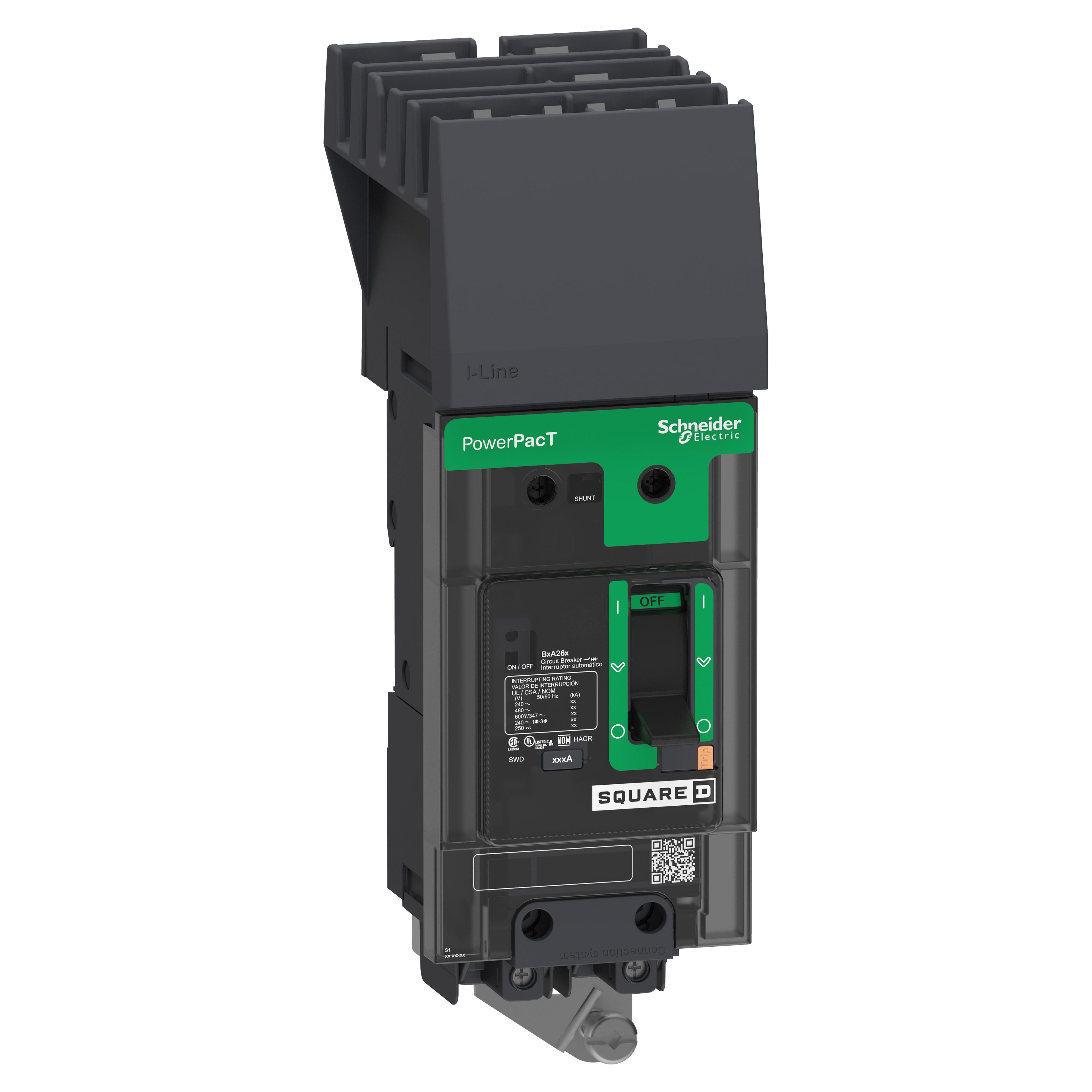

New BDA24030Y1 Square D BDA24030Y1 2 Pole Circuit Breaker

Square D BDA24030Y1 2 Pole Circuit Breaker

Specifications :

• Series: BDA

• Amperage: 30

• Poles: 2

• MPN: BDA24030Y1

• Voltage: 480Y/277VAC

• Phase: 1

• Frame Type: BDA

• Connection Type: I-Line Style Plug-In

• Functions: Long Time and Instantaneous Trip

• Protection: Thermal Magnetic

• Circuit Breaker Type: Standard

• Application: Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Industrial and Commercial

• Terminal Connection: Line and Load Lug

• Temperature Rating: -13 to 158°F

• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper

• Actuator Type: Toggle

• Color: Gray

• Interrupting Rating: 18kAIC@480V

• Size: 5.39"H x 2.13"W x 3.50"D

• Standards: CE, UL, GB, NEMA, EN/IEC, CSA, NMX, CCC, EAC, NOM, RoHS
