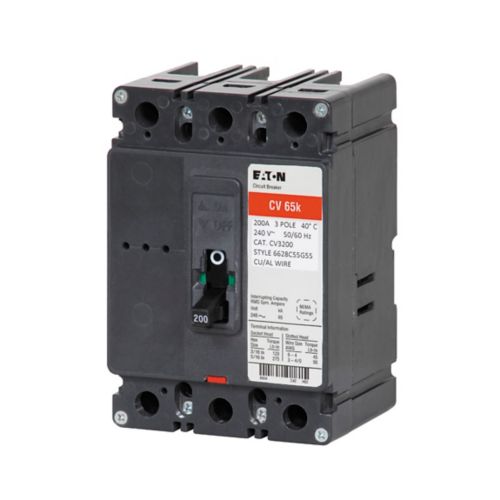

Eaton CVH3200X 3 Pole Circuit Breaker
Specifications :
• Series: CVH
• Amperage: 200
• Poles: 3
• Mounting Type: Panel
• MPN: CVH3200X
• Voltage: 120/240VAC
• Phase: 3
• Frame Type: CVH
• Connection Type: Bolt-On
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• For Use With: 37MM and 37SS Modular Metering Stacks
• Application: Other Generation - Conventional Energy Data Centers - IT Space: CI and Hyper Converged Marine Vessels and Equipment - Renewable Energy - Alternative Energy
• Terminal Connection: Line and Load Side Lug
• Temperature Rating: 40°C
• Wire Gauge: #6 to 4/0 AWG CU/AL
• Actuator Type: Handle
• Interrupting Rating: 100kAIC@240V
• Size: 4.9"H x 4.9"W x 7.7"D
• Approval: UL, CSA
