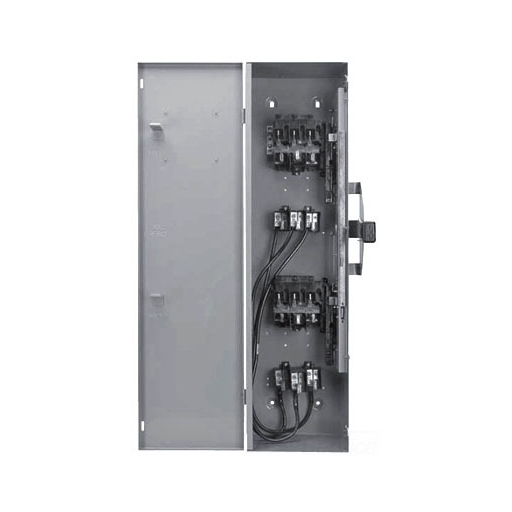

Square D DTU223 Safety Switch
Specifications :
• Series: F
• Amperage: 100
• Poles: 2
• Mounting Type: Surface
• MPN: DTU223
• Voltage: 240VAC, 250VDC
• Phase: 1
• Frame Type: D
• Connection Type: Screw Clamp
• Application: Residential, Light Commercial and Industrial
• Wire Gauge: AWG 12 to AWG 1/0 Aluminum, AWG 14 to AWG 1/0 Copper
• Duty Rating: Heavy Duty
• Fusibility: Non-Fusible
• Nema Rating: 1
• Configuration: Single
• Short Circuit Current Rating: 10kA
• Interrupting Rating: 200kAIC at 240V
• Size: 11.96"H x 29.94"W x 6.93"D
• Approval: UL, CSA
• Standards: RoHS
