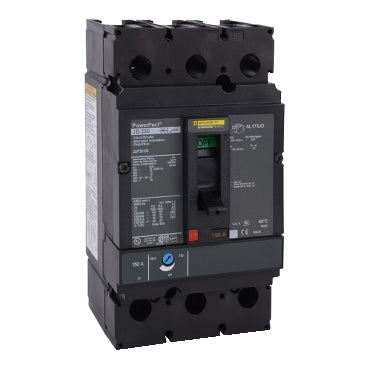

New JGP36250 Square D JGP36250 3 Pole Circuit Breaker
Square D JGP36250 3 Pole Circuit Breaker
Specifications :
• Series: JGP
• Amperage: 250
• Poles: 3
• Mounting Type: Unit
• MPN: JGP36250
• Voltage: 600VAC, 500VDC
• Phase: 3
• Frame Type: JGP
• Connection Type: Bolt-On
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Application: Distribution, Reverse Fed
• Terminal Connection: Load Side Lug
• Temperature Rating: -2 to 70 °C
• Wire Gauge: AWG 3/0 to 350 KCmil Aluminum/Copper
• Actuator Type: Toggle
• Interrupting Rating: 35kAIC at 480V
• Size: 7.52"H x 4.09"W x 3.39"D
• Approval: CE, UL, CSA, NEMA, NOM, IEC, CCC
• Standards: RoHS, HACR
