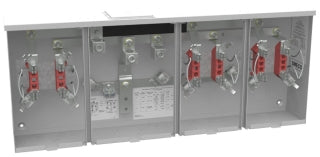

U1253-X-KK-K3-BL, Milbank Multi-Position Meter Socket
$1,659.87
- Multi-Position Meter Socket
- Type Ringless
- Service Type Overhead/Underground
- Circuit Configuration 1-Phase 3-Wire
- Voltage Rating 300 VAC
- Current Rating 200 Ampere
- Number of Positions 3
- Number of Jaws 4
- Hub Type Large Closing Plate
- Wire Size 4 AWG to 600 KCMIL/(2) 1/0 AWG to 250 KCMIL (Line), 6 AWG to 350 KCMIL (Load)
- Enclosure NEMA 3R
- Mounting Surface
- Size 34-11/16 Inch W x 5-1/8 Inch D x 14 Inch H
- Approval UL
- Connector Material Tin Plated Extruded Aluminum
- Material Powder Coated G90 Galvanized Steel
- Bypass Type Horn
- Barrel Lock Provision 9/16 Inch Knockout and Angle Bracket
- Knockouts (1) 3 Inch, (7) 2-1/2 Inch, (1) 1 Inch, (2) 1/2 Inch, (1) 1/4 Inch Concentric Knockout
