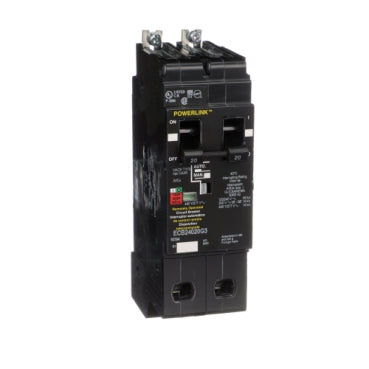

New ECB24020G3 Square D ECB24020G3 2 Pole Circuit Breaker

Square D ECB24020G3 2 Pole Circuit Breaker

Specifications :

• Series: Powerlink

• Amperage: 20

• Poles: 2

• Mounting Type: Panel

• MPN: ECB24020G3

• Voltage: 480Y/277VAC

• Phase: 1

• Frame Type: ECB

• Connection Type: Bolt-On

• Functions: Long Time and Instantaneous Trip

• Protection: Thermal Magnetic

• Application: HID Rated, Switching Duty Rated, HACR Rated

• Temperature Rating: 104°F (40°C)

• Wire Gauge: AWG 12 to AWG 8 Aluminum, AWG 10 to AWG 8 Copper

• Interrupting Rating: 14kA at 480Y/277VAC, 65kA at 120/240VAC

• Size: 3.3"H x 6.6"W x 10"D

• Approval: UL, CSA

• Standards: RoHS
