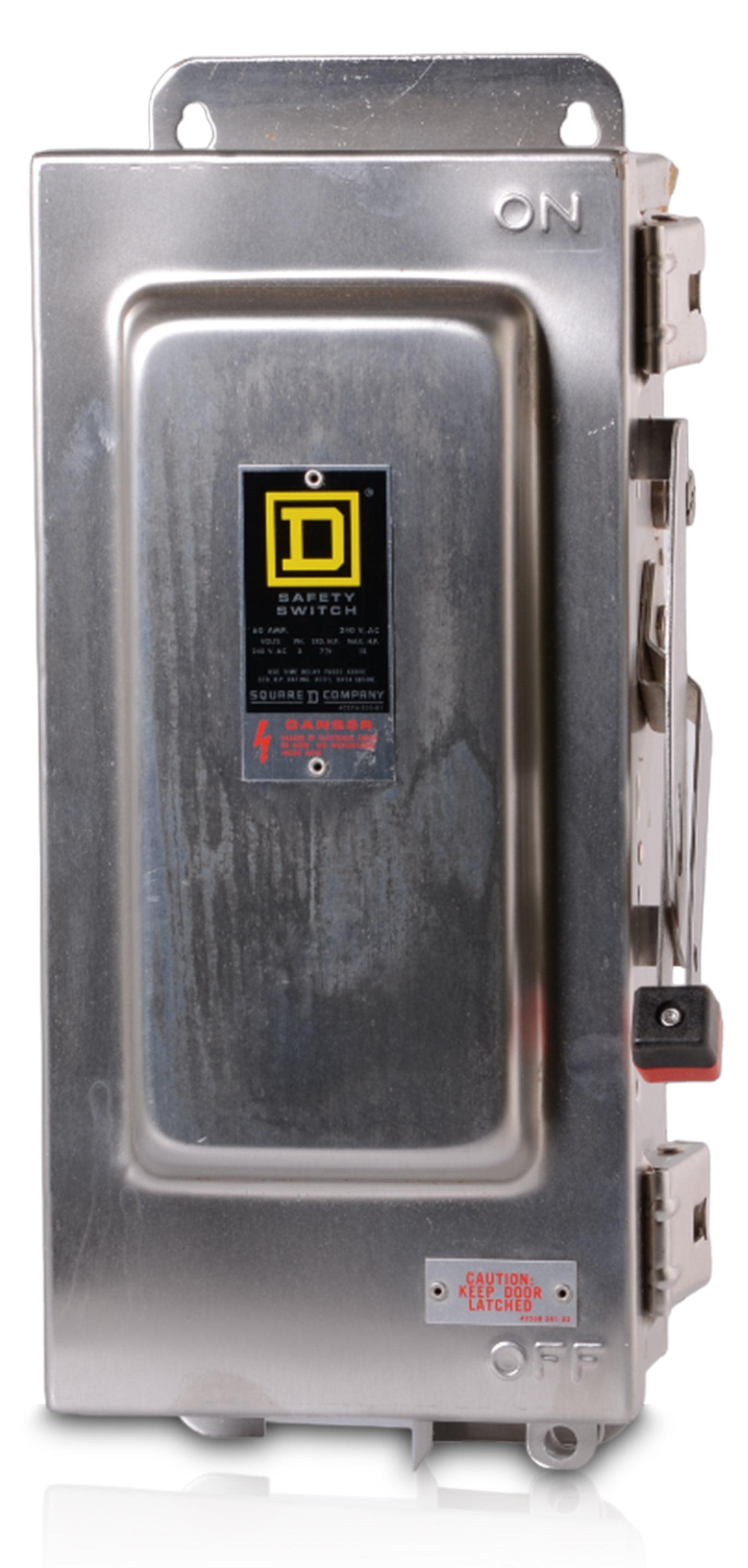

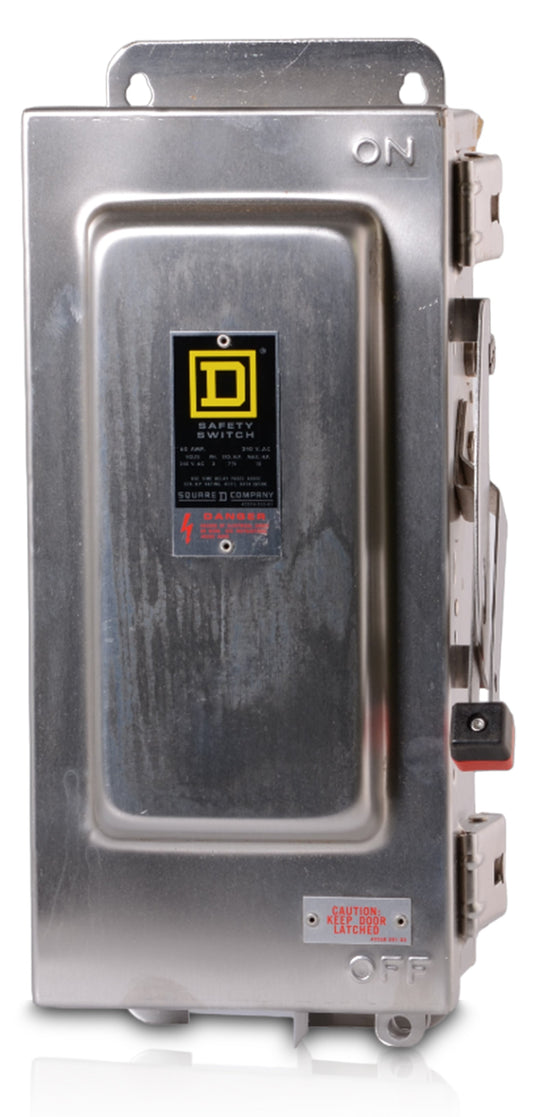

Square D H322DS Safety Switch
Specifications :
• Series: H3
• Amperage: 60
• Poles: 3
• Mounting Type: Surface
• MPN: H322DS
• Voltage: 240VAC, 250VDC
• Phase: 3
• Frame Type: D
• For Use With: Class R Fuse
• Application: Residential, Commercial, Industrial
• Terminal Connection: Lug
• Wire Gauge: AWG 14 to AWG 3 Copper, AWG 12 to AWG 3 Aluminum
• Fusibility: Fusible
• Duty Rating: Heavy Duty
• Nema Rating: 4, 4X, 5
• Enclosure Material: 304 Stainless Steel
• Number of Wires: 3
• Configuration: Single
• Short Circuit Current Rating: 10-200kA
• Interrupting Rating: 200kA@240V
• Size: 14.93"H x 7.22"W x 5.11"D
• Approval: UL
• Standards: RoHS
