New HJA36100U44X Square D HJA36100U44X 3 Pole Circuit Breaker

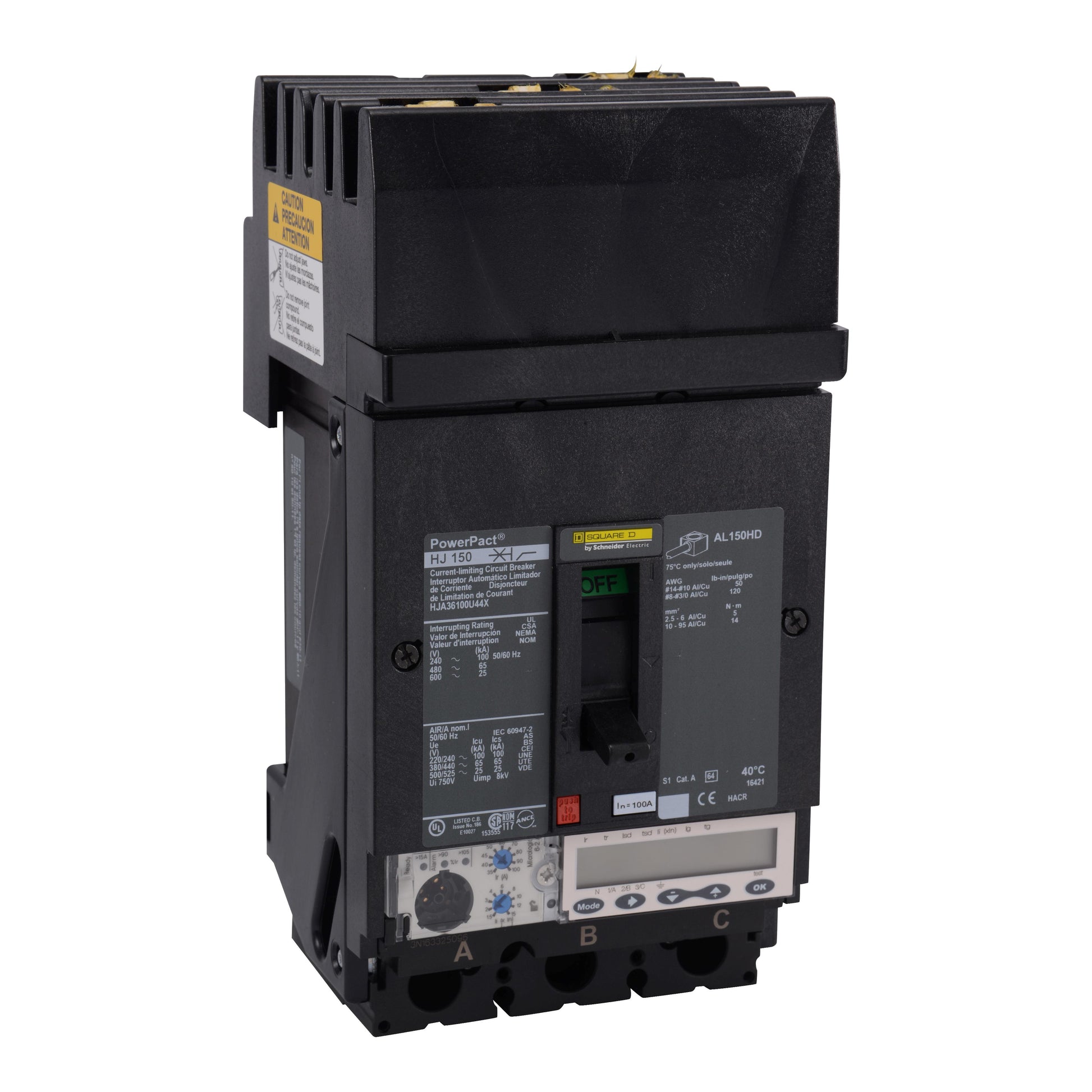

Square D HJA36100U44X 3 Pole Circuit Breaker
Specifications :
• Series: HJA
• Amperage: 100
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• MPN: HJA36100U44X
• Voltage: 600VAC, 250VDC
• Phase: 3
• Frame Type: HJA
• Functions: Long Time, Short Time, Ground Fault and Instantaneous Trip
• Protection: Thermal Magnetic
• Application: Distribution, Reverse Fed
• Terminal Connection: Line and Load Side Lug
• Temperature Rating: -2 to 70 °C
• Wire Gauge: AWG 14 to AWG 3/0, Aluminum/Copper
• Actuator Type: Toggle
• Color: Black
• Interrupting Rating: 100kAIC at 240VAC, 65kAIC at 480VAC, 25kAIC at 600VAC, 18kAIC at 250VDC
• Size: 6.42"H x 4.09"W x 3.39"D
• Approval: CE, UL, CSA, NEMA, NOM, IEC, CCC
• Standards: RoHS, REACh, HACR
