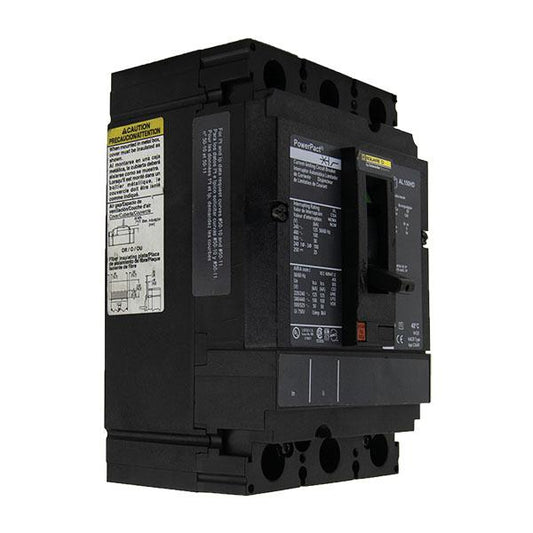

New HLP36070 Square D HLP36070 3 Pole Circuit Breaker

Square D HLP36070 3 Pole Circuit Breaker

Specifications :

• Series: PowerPact H

• Amperage: 70

• Poles: 3

• Mounting Type: Unit

• MPN: HLP36070

• Voltage: 600VAC

• Phase: 3

• Frame Type: HLA

• Connection Type: I-Line Style Plug-In

• Functions: Long Time and Instantaneous Trip

• Protection: Thermal Magnetic

• Application: Distribution, Reverse Fed

• Terminal Connection: Line and Load Side Lug

• Temperature Rating: -2 to 70 °C

• Wire Gauge: AWG 14 to AWG 3/0, Aluminum/Copper

• Interrupting Rating: 125kAIC at 240VAC, 100kAIC at 480VAC, 50kAIC at 600VAC

• Actuator Type: Toggle

• Color: Black

• Size: 6.42"H x 4.09"W x 3.39"D

• Approval: UL, CSA, NEMA, NOM, IEC

• Standards: RoHS, REACh, HACR
