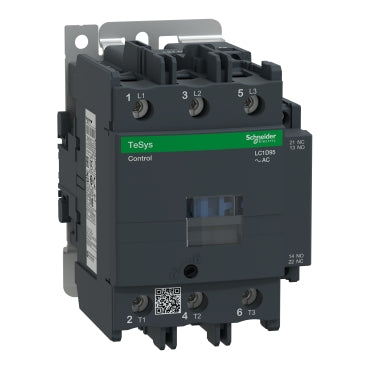

New LC1D95P7 Square D LC1D95P7 Contactor

Square D LC1D95P7 Contactor

Specifications :

• Series: LC1D

• Amperage: 95

• Poles: 3

• Mounting Type: Rail Plate

• MPN: LC1D95P7

• Voltage: 440VAC

• Phase: 3

• Frame Type: LC1D

• Connection Type: Screw Clamp

• For Use With: Motor Control Systems

• Application: Motor Control, Resistive Load

• Temperature Rating: -40 to 60 °C

• Configuration: 3 NO

• Operating Cycles: 3600

• Coil Volts: 230VAC at 50/60Hz

• Size: 5"H x 3.34"W x 5.11"D

• Action: Non-Reversing

• Approval: IEC, UL, CSA, CCC, EAC, Marine

• Standards: RoHS, REACh
