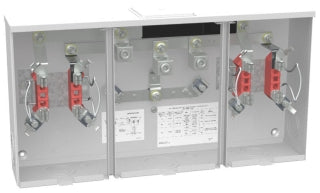

- Multi-Position Meter Socket
- Type Ringless
- Service Type Overhead/Underground
- Circuit Configuration 1-Phase 3-Wire
- Voltage Rating 300 VAC
- Current Rating 200 Ampere
- Main Lug Current 400 Ampere
- Number of Positions 2
- Number of Jaws 4
- Hub Type Large Closing Plate
- Wire Size 4 AWG to 600 KCMIL/(2) 1/0 AWG to 250 KCMIL (Line), 6 AWG to 350 KCMIL (Load)
- Enclosure NEMA 3R
- Mounting Surface
- Size 26-1/2 Inch W x 5-1/8 Inch D x 14 Inch H
- Approval UL
- Material Powder Coated G90 Galvanized Steel
- Bypass Type Horn
- Knockouts (1) (1/2 Inch - 3/4 Inch - 1 Inch), (6) (1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch), (1) (2 Inch - 2-1/2 Inch - 3 Inch) Concentric Knockout, (1) 1/4 Inch, (2) 7/8 Inch Solid Knockout
