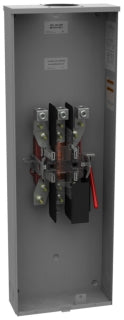

- Single Position Meter Socket
- Type Ringless
- Service Type Overhead
- Circuit Configuration 1-Phase
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 320 Ampere
- Bypass Switch Type Lever
- Number of Jaws 4
- Hub Type Large Opening
- Knockouts (4) 3 Inch, (1) 2-1/2 Inch, (1) (1/4 Inch - 1/2 Inch), (1) 1/4 Inch Concentric Knockout
- Wire Size 4 AWG to 600 KCMIL/(2) 1/0 AWG to 250 KCMIL (Line)
- Enclosure NEMA 3R
- Mounting Surface
- Enclosure Material Powder Coated G90 Galvanized Steel
- Size 13 Inch W x 4-7/8 Inch D x 38-3/4 Inch H
- Approval UL
- Includes Barrel Lock with Provision Guard
