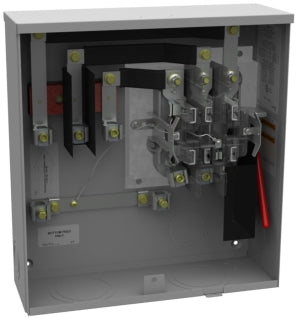

- Milbank U3786-O 7 Terminal, 3 Phase Ringless Meter Socket 200-Amp 600-Volt ACSingle Position Meter Socket
- Type Ringless
- Service Type Underground
- Circuit Configuration 3-Phase 4-Wire
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 200 Ampere
- Bypass Switch Type Lever
- Number of Jaws 7
- Hub Type Plain Top
- Knockouts (1) (1/4 Inch - 1/2 Inch), (2) (1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch), (1) (2 Inch, 2-1/2 Inch, 3 Inch), (2) (3 Inch - 3-1/2 Inch - 4 Inch) Concentric Knockout
- Wire Size 6 AWG to 350 KCMIL (Line/Load)
- Enclosure NEMA 3R
- Mounting Surface
- Enclosure Material Powder Coated G90 Galvanized Steel
- Size 18 Inch W x 6 Inch D x 19-1/4 Inch H
- Approval UL
- Includes Barrel Lock with Provision Guard
