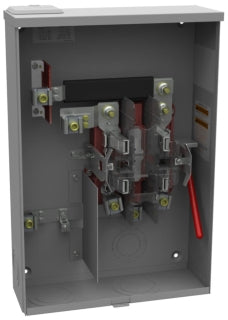

- Single Position Meter Socket
- Type Ringless
- Service Type Overhead/Underground
- Circuit Configuration 1-Phase
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 200 Ampere
- Bypass Switch Type Lever
- Number of Jaws 4
- Hub Type Small Closing Plate
- Knockouts (1) (1/4 Inch - 1/2 Inch), (3) (1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch), (2) (2 Inch - 2-1/2 Inch - 3 Inch) Concentric Knockout
- Wire Size 6 AWG to 350 KCMIL (Line/Load)
- Enclosure NEMA 3R
- Mounting Surface
- Enclosure Material Powder Coated G90 Galvanized Steel
- Size 14 Inch W x 4-7/8 Inch D x 20-1/2 Inch H
- Approval UL
