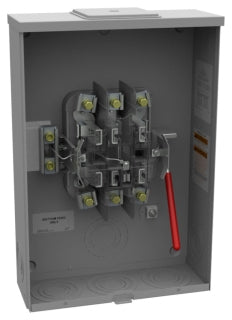

- Type Ringless
- Service Type Overhead/Underground
- Circuit Configuration 3-Phase 4-Wire
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 200 Ampere
- Bypass Switch Type Lever
- Number of Jaws 7
- Hub Type Large Closing Plate
- Knockouts (1) (1/4 Inch - 1/2 Inch), (2) (1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch), (4) (2 Inch - 2-1/2 Inch - 3 Inch) Concentric Knockout, (1) 1/4 Inch Solid Knockout
- Enclosure NEMA 3R
- Enclosure Material Powder Coated G90 Galvanized Steel
- Mounting Surface
- Wire Size 6 AWG to 350 KCMIL (Line), 6 AWG to 350 KCMIL (Load)
- Size 13 Inch W x 4-7/8 Inch D x 19 Inch H
- Approval UL
- Maximum Current Rating 200 Ampere
- Number of Positions 1
