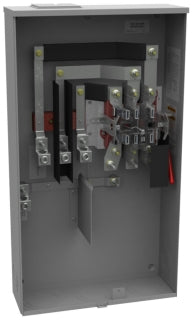

- Single Position Meter Socket
- Type Ringless
- Service Type Overhead/Underground
- Circuit Configuration 3-Phase
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 320 Ampere
- Bypass Switch Type Lever
- Number of Jaws 7
- Hub Type Large Closing Plate
- Knockouts (2) (2 Inch - 2-1/2 Inch - 3 Inch), (3) (3 Inch - 3-1/2 Inch - 4 Inch) Concentric Knockout, (1) 1/2 Inch Solid Knockout
- Wire Size (1) 4 AWG to 600 KCMIL/(2) 1/0 AWG to 250 KCMIL (Line), 3/8 Inch-16 TPI Stud (Load)
- Enclosure NEMA 3R
- Mounting Surface
- Enclosure Material Powder Coated G90 Galvanized Steel
- Size 19 Inch W x 6-1/2 Inch D x 34-1/8 Inch H
- Approval UL
- Includes Barrel Lock with Provision Guard
