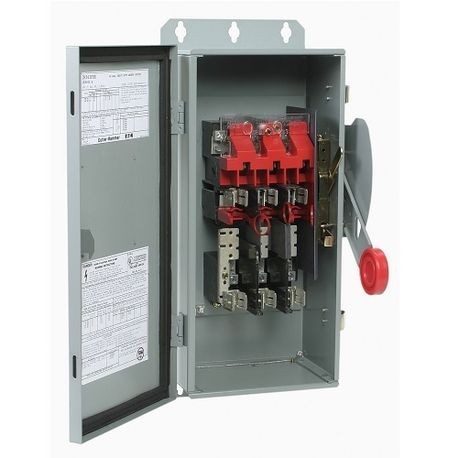

Eaton DH361NGK Safety Switch
Specifications :
• Series: DH
• Amperage: 30
• Poles: 3
• Mounting Type: Surface
• MPN: DH361NGK
• Voltage: 600VAC, 250VDC
• Phase: 3
• Frame Type: DH
• Application: Commercial, Institutional Buildings, Structures - Power Distribution and Controls, Indoor
• Fusibility: Fusible
• Duty Rating: Heavy Duty
• Nema Rating: 1
• Enclosure Material: Painted Steel
• Number of Wires: 4
• Wire Gauge: AWG 14 to AWG 2 Aluminum/Copper
• Configuration: Single Throw
• Interrupting Rating: 200kAIC at 600V
• Size: 8.5"H x 9.5"W x 16.5"D
• Approval: UL, cUL
