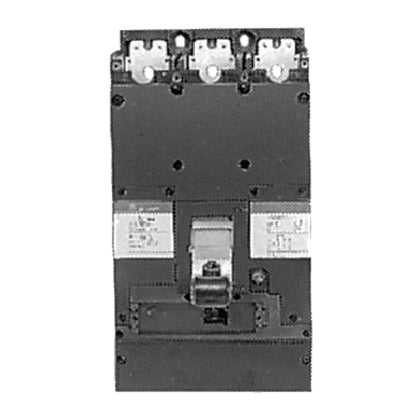

SKLA36AI0800 - General Electric Molded Case Circuit Breaker
Specifications :
• Manufacturer : General Electric
• Cat. No. : SKLA36AI0800
• Alternate Part No. : SKLA-36AI0800
• Product Type : Circuit Breaker
• Molded Case Electronic
• Sk Frame
• Family : Spectra Series
• Type : SKLA
• No. Of Phase : 3 PH
• No. Of Poles : 3 Pole
• Voltage Rating : 600 VAC
• Amperage Rating : 800 AMP
• Connection : Feed-Thru
• Protection : Magnetic Only
• Functions : (I) Instantaneous
• Interrupting Rating 100 Kiloampere At 240 Vac 65 Kiloampere At 480 Vac 42 Kiloampere At 600 Vac (Ul)
• 100 Kiloampere At 220 To 240 Vac 65 Kiloampere At 380 To 415 42 Kiloampere At 500 Vac 14 Kiloampere At 690 Vac (Iec)
• Terminal Not Included
• Size 8.25 Inch W X 5.5 Inch D X 15.5 Inch H
• Approval Ul Ce
• Spectra Rms[R] Brand
• Skl Model
