Transformers In Stock & Ready To Ship

Transformers — Emergency Build & Same-Day Stock

When a transformer fails, the clock starts. Utility lead times on new commercial and industrial distribution transformers now routinely run 40 to 60 weeks, with some configurations stretching beyond a year. We carry verified, ready-to-ship commercial and industrial transformers in our warehouses across Colorado, Texas, and California so contractors, facility managers, and plant operators do not have to wait.

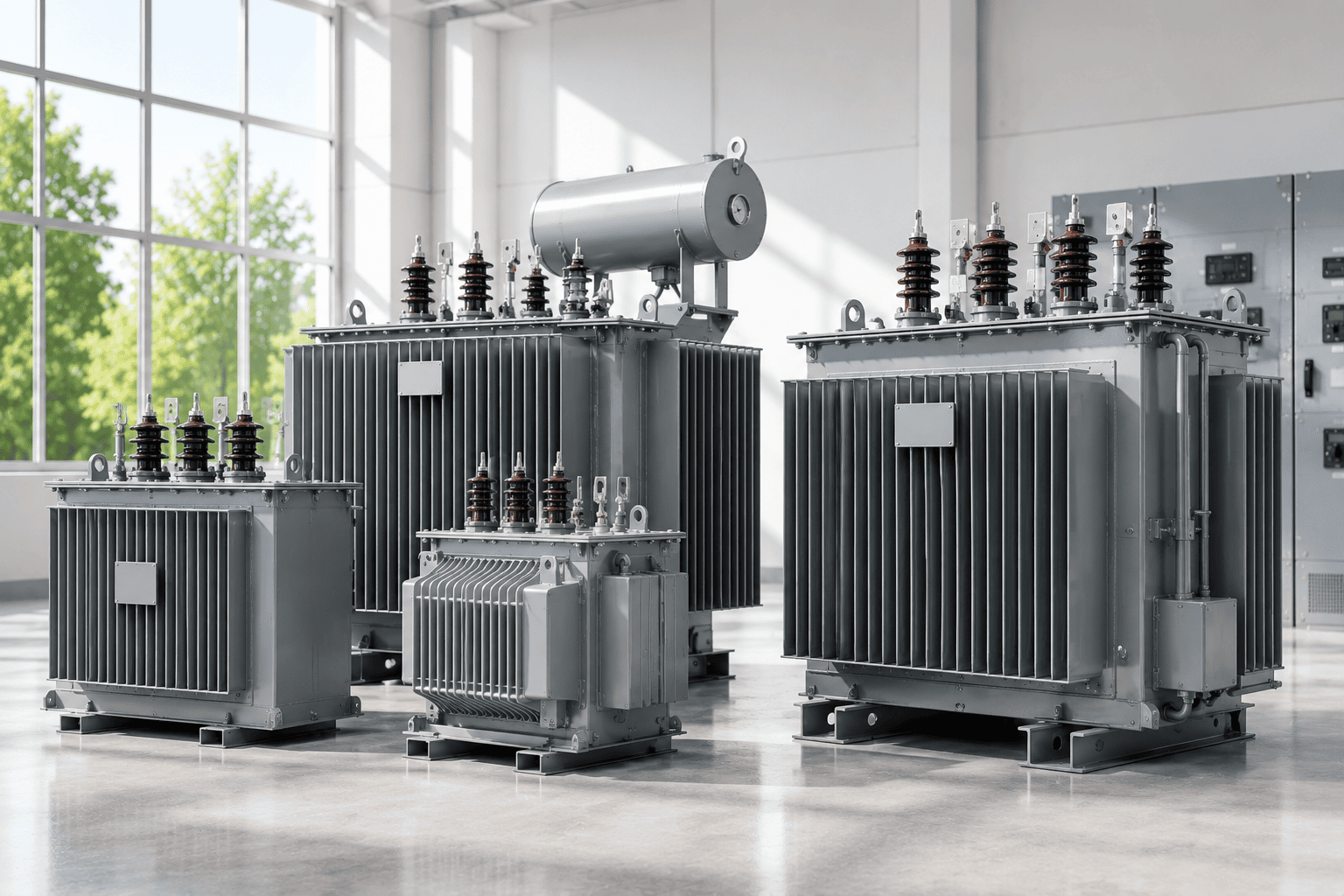

Our inventory covers the full range of dry-type and liquid-filled distribution transformers used in commercial buildings, manufacturing plants, data centers, and utility-grade installations. Every unit is tested, documented, and prepared for nationwide same-day or next-day dispatch.

Dry-Type vs. Liquid-Filled Distribution Transformers

The first decision on any transformer purchase is dry-type or liquid-filled. The two technologies serve different installation environments and load profiles, and our stock covers both.

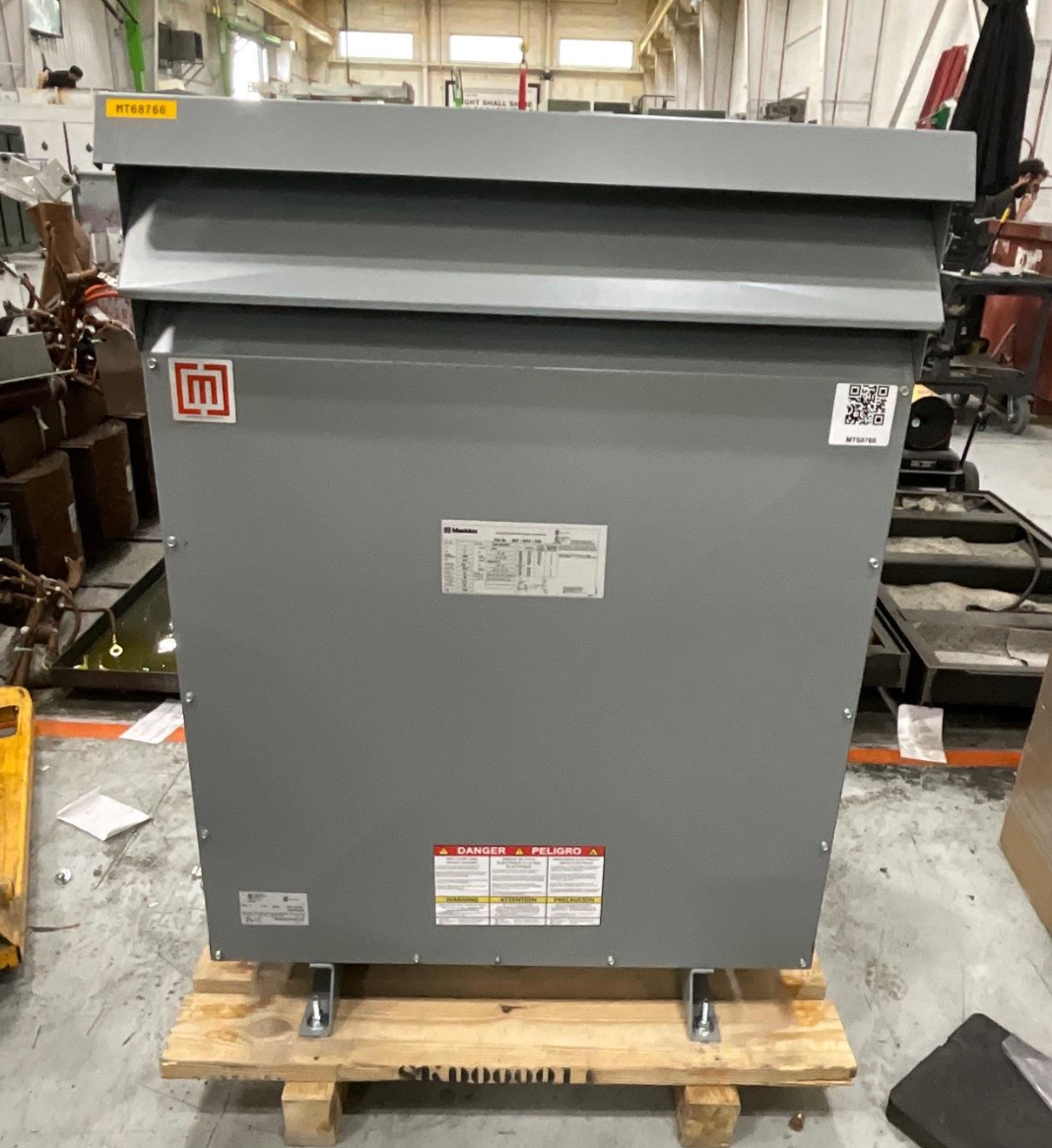

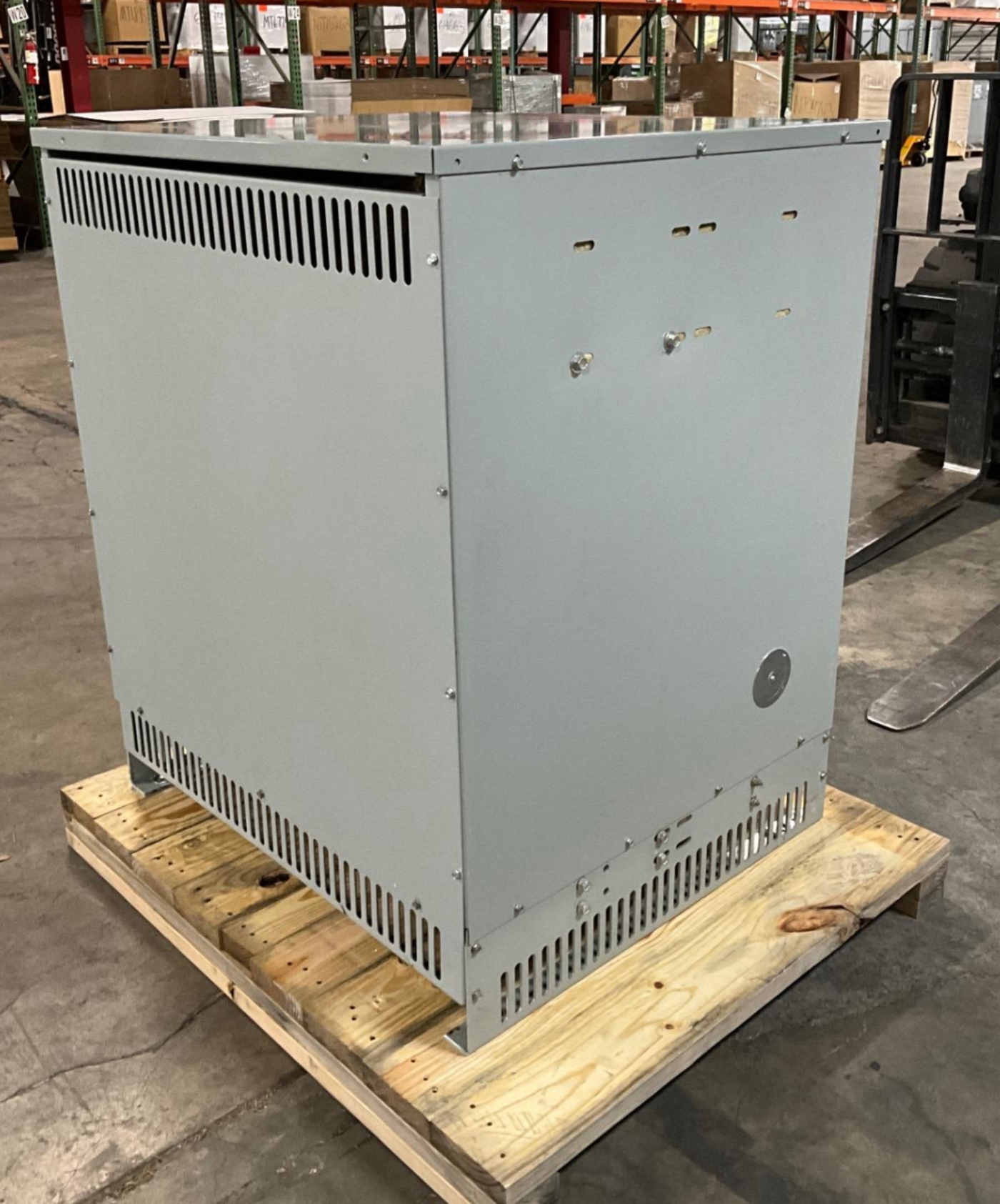

Dry-type transformers use air or solid-cast insulation rather than fluid. They are the standard for indoor installations, multi-story commercial buildings, hospitals, schools, and any application where fire code, environmental risk, or building access rules out an oil-filled unit. We carry general-purpose ventilated dry-type units, encapsulated NEMA 3R dry-types for outdoor or harsh environments, and K-factor rated dry-types built to handle the harmonic loads generated by data centers, variable frequency drives, and modern non-linear equipment.

Liquid-filled transformers, including pad-mount units, use mineral oil or FR3 ester fluid as both insulator and coolant. They run cooler and last longer under heavy continuous loads, which is why utilities, large industrial sites, and most outdoor pad-mount installations specify them. We stock three-phase pad-mount liquid-filled transformers in standard primary voltages from 13.8 kV down to 480 V, with secondary configurations to match the building or process load.

K-Factor Rated Dry-Types for Harmonic Loads

If the downstream load includes a meaningful share of non-linear equipment — server racks, UPS systems, VFDs, LED drivers, medical imaging — a standard dry-type transformer will run hot and age fast. K-factor rated units handle the additional eddy-current and stray losses generated by harmonic currents without insulation degradation.

Common K-factor ratings include K-4 for light non-linear duty, K-13 for typical commercial server rooms and office floors, and K-20 or K-30 for dedicated data center and industrial automation feeds. We stock K-rated units across the standard kVA range and can ship same day when the existing unit fails under harmonic stress.

Typical kVA Ratings and Voltage Configurations

Our transformer inventory spans 15 kVA pole-mount and indoor general-purpose units up through 2500 kVA pad-mount distribution units. The most frequently requested configurations include:

• 15 to 75 kVA — small commercial, light industrial, single-phase 480 V to 120/240 V step-down for lighting panels, small machinery, and tenant fit-outs
• 112.5 to 300 kVA — three-phase 480 V delta to 208Y/120 V wye for receptacle panels, IT rooms, and standard commercial floor loads
• 500 to 1000 kVA — three-phase 480 V to 208Y/120 V or 480Y/277 V for full-building distribution, mid-sized data center pods, and manufacturing cells
• 1500 to 2500 kVA — medium-voltage primary (12.47 kV or 13.8 kV) stepped down to 480Y/277 V for large industrial services, hyperscale data center modules, and campus substations

Both step-down and step-up configurations are in stock. Step-up units are common where on-site generation or solar inverter output needs to feed back at medium voltage, and the lead times on those are often worse than standard step-downs because they are less commonly stocked by manufacturers.

Brand Inventory

We carry verified transformers from every major North American manufacturer so the replacement matches the existing switchgear, panelboard, and feeder configuration without re-engineering.

• Square D (Schneider Electric) — S2, SD, SF, and EX series dry-types, plus three-phase pad-mount liquid-filled units
• Siemens — Series 4000 dry-type general-purpose and K-factor units, plus medium-voltage distribution transformers
• Eaton — Type EP encapsulated dry-types, ventilated general-purpose units, and pole-mount distribution transformers
• GE Prolec — dry-type and pad-mount liquid-filled distribution units
• ABB — dry-type and oil-filled distribution transformers across the standard kVA range
• Hammond — specialty dry-type, drive isolation, and K-factor units
• Federal Pacific — general-purpose dry-type transformers for commercial and industrial service

If the existing unit is a brand or series not listed, request a quote with the nameplate data and we will match it from stock or source a verified equivalent.

Applications

Commercial and industrial transformer demand is driven by four sectors, and we stock for all four:

Commercial buildings — office complexes, retail centers, hospitals, and educational campuses use dry-type transformers to step utility-fed 480 V service down to 208Y/120 V for receptacles, lighting, and HVAC controls. Replacement is usually triggered by failure, expansion, or tenant build-out.

Industrial and manufacturing — plants running motors, welders, induction heating, and process equipment need transformers sized for inrush, harmonic content, and continuous heavy duty. Liquid-filled units are common where the kVA is high and the installation is outdoor or in a dedicated electrical room.

Data centers — the fastest-growing transformer market in the US. Hyperscale builds, colocation expansions, and AI-load retrofits all need K-factor rated dry-types for the IT load and pad-mount liquid-filled units for the medium-voltage utility feed. Lead times from manufacturers for data center-spec transformers are currently the worst in the industry.

Utility and infrastructure — municipal facilities, water treatment plants, telecom hubs, and renewable interconnections all draw from the same pool of distribution transformers, with utility lead times exceeding 60 weeks on many standard configurations.

Why Verified Breakers

The transformer market right now is broken in one specific way: manufacturer lead times are 20 to 60+ weeks while project deadlines, plant uptime, and code inspections do not move. We solve that gap by carrying verified inventory, ready to ship.

Every transformer in our stock is electrically tested, mechanically inspected, and documented with full nameplate data before it ships. We provide turns ratio, insulation resistance, and winding resistance test reports on request. Units ship from Colorado, Texas, or California depending on proximity to the install site, with freight quoted at order.

Our core promise: 24-48 hour turnaround when manufacturer lead times are 20+ weeks. For an emergency transformer failure where a plant is down, a tenant is locked out, or an inspection is on the line, that difference is the difference between a working facility and weeks of lost revenue.

We supply contractors, facility managers, data center operators, and industrial buyers across all 50 states. Volume pricing is available on multi-unit orders and ongoing project supply.

Request a Quote

Send the nameplate data from the existing transformer — kVA, primary voltage, secondary voltage, phase, K-factor if applicable, and any specific brand or series requirement — and we will respond with stock availability, pricing, and ship date within the same business day. For emergency builds where a transformer has already failed, call directly and we will check inventory in real time.

Request a transformer quote or call our team for emergency stock availability.
