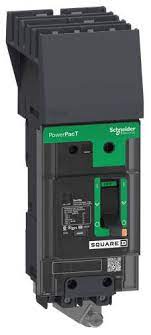

New BGA260302 Square D BGA260302 2 Pole Circuit Breaker
Eaton BGA260302 2 Pole Circuit Breaker
Specifications :
• Series: PowerPacT B
• Amperage: 30
• Poles: 2
• Mounting Type: I-Line
• MPN: BGA260302
• Voltage: 600VAC
• Phase: 1
• Frame Type: BGA
• Connection Type: Plug-In
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Application: Distribution, Reverse Fed
• Terminal Connection: Load Side Mechanical Lug
• Temperature Rating: -25 to 70 °C
• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
• Actuator Type: Toggle
• Color: Gray
• Interrupting Rating: 35kAIC at 480VAC, 18kAIC at 600VAC, 65kAIC at 240VAC
• Size: 5.39"H x 2.13"W x 3.50"D
• Approval: UL, IEC, CCC, EAC, CE, CSA, NOM, NEMA
• Standards: RoHS, HACR
