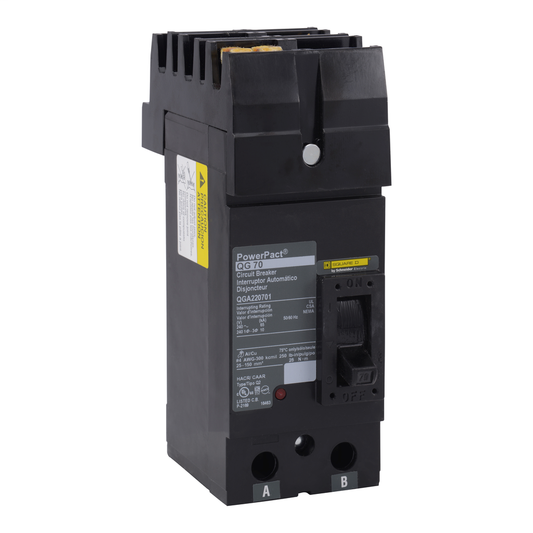

New QGA220701 Square D QGA220701 2 Pole Circuit Breaker
Square D QGA220701 2 Pole Circuit Breaker
Specifications :
• Series: QGA
• Amperage: 70
• Poles: 2
• Mounting Type: I-Line Bracket
• MPN: QGA220701
• Voltage: 240VAC
• Phase: 1
• Frame Type: Q
• Connection Type: I-Line Style Plug-In
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Application: Distribution, OEM Commercial, Industrial Markets
• Actuator Type: Operating Handle
• Terminal Connection: Load Side Lug
• Temperature Rating: 40 to 70 °C
• Interrupting Rating: 65kAIC at 120/240VAC
• Size: 6.47"H x 3"W x 3.93"D
• Approval: UL, CSA, NEMA, NOM
• Standards: RoHS, REACh, HACR
