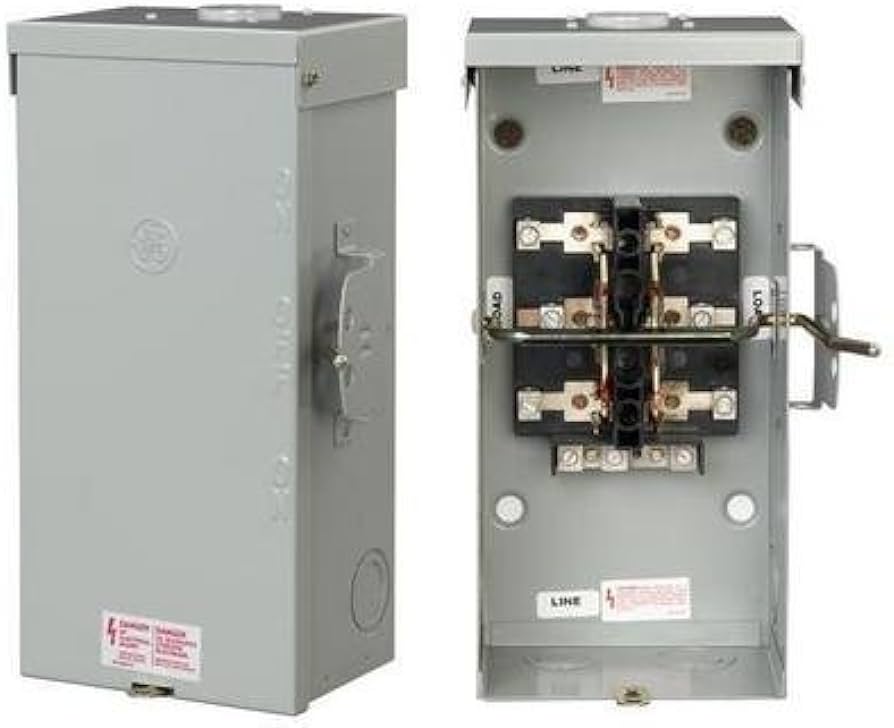

New TC10324R General Electric TC10324R Safety Switch
General Electric TC10324R Safety Switch
Specifications :
• Series: TC
• Amperage: 200
• Poles: 3
• Mounting Type: Surface
• MPN: TC10324R
• Voltage: 120/240 VAC
• Phase: 1
• For Use With: 6 to 250 AWG/KCmil Copper or Aluminum lug wire
• Application: Back-Up Generator
• Temperature Rating: 60 to 75 °C
• Nema Rating: 3R
• Fusibility: Non-Fusible
• Duty Rating: Heavy Duty
• Number of Wires: 3
• Short Circuit Current Rating: 200kA
• Configuration: Single
• Interrupting Rating: 100kA@600V
• Includes: Closure Caps
• Size: 10"H x 15.62"W x 10"D
• Standards: UL, cUL, NEMA, ANSI
