New TED124110WL General Electric TED124110WL 2 Pole Circuit Breaker

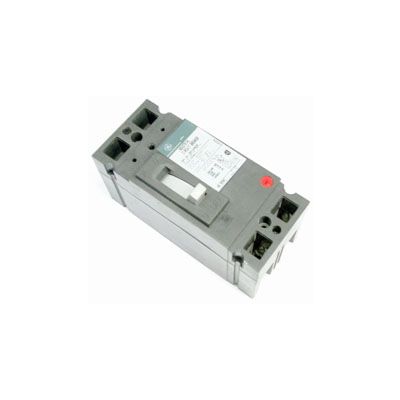

General Electric TED124110WL 2 Pole Circuit Breaker

Specifications :

• Series: TED

• Amperage: 110

• Poles: 2

• Mounting Type: Bolt-On

• MPN: TED124110WL

• Voltage: 480VAC, 125/250VDC

• Phase: 1

• Frame Type: TED

• Connection Type: Feed-Thru

• Circuit Breaker Type: Standard

• Functions: Long Time and Instantaneous Trip

• Protection: Thermal Magnetic

• For Use With: Light Panels, Motor Control Centers and Panelboards

• Terminal Connection: Line and Load Side Lug

• Temperature Rating: 40 °C

• Min Wire Size: 12 AWG, 14 AWG, Al/Cu

• Max Wire Size: 1/0 AWG, 3 AWG, Al/Cu

• Actuator Type: Toggle

• Interrupting Rating: 18kAIC at 120/240/277/480VAC

• Size: 6.31"H x 2.75"W x 4.09"D

• Approval: CSA, UL
