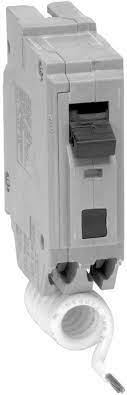

New THHQL1115AF2 General Electric THHQL1115AF2 1 Pole Combination Arc Fault Circuit Breaker
General Electric THHQL1115AF2 1 Pole Combination Arc Fault Circuit Breaker
Specifications :
• Series: THHQL
• Amperage: 15
• Poles: 1
• MPN: THHQL1115AF2
• Voltage: 120/240VAC
• Phase: 1
• Frame Type: THQL
• Connection Type: Plug-In
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Circuit Breaker Type: CAFCI
• For Use With: Power Mark Gold Load Centers and AQ Lighting Panels
• Application: Heating, Air Conditioning and Refrigeration
• Terminal Connection: Load Side Lug
• Temperature Rating: 10 to 50°C
• Actuator Type: Toggle
• Body Material: Plastic
• Min Wire Size: 14 AWG
• Max Wire Size: 10 AWG
• Interrupting Rating: 22kA at 120/240VAC
• Size: 3.28"H x 1"W x 2.38"D
• Standards: UL, CSA
