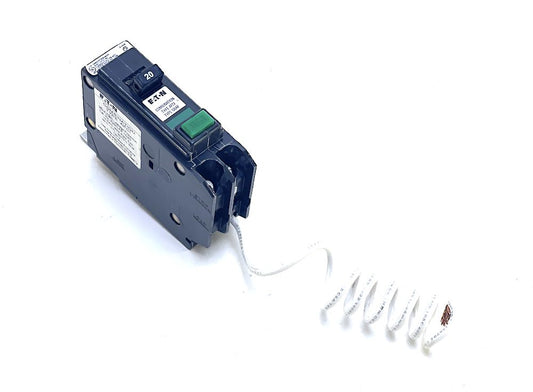

Eaton QBCAF1020 1 Pole Combination Arc Fault Circuit Breaker
Specifications :
• Series: QB
• Amperage: 20
• Poles: 1
• Mounting Type: Panel
• MPN: QBCAF1020
• Voltage: 120/240VAC
• Phase: 1
• Frame Type: BAB
• Connection Type: Bolt-On
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Circuit Breaker Type: CAFCI
• For Use With: Load Centers and Fuseboxes
• Application: Generation - Renewable Energy - Alternative Energy - Other - Conventional Energy - Datacenters - IT Space: CI and Hyper Converged - Marine Vessels and Equipment
• Terminal Connection: Box Lug
• Interrupting Rating: 10kAIC@120V
• Size: 1.2"H x 3.3"W x 5.1"D
• Approval: UL
• Standards: HACR
