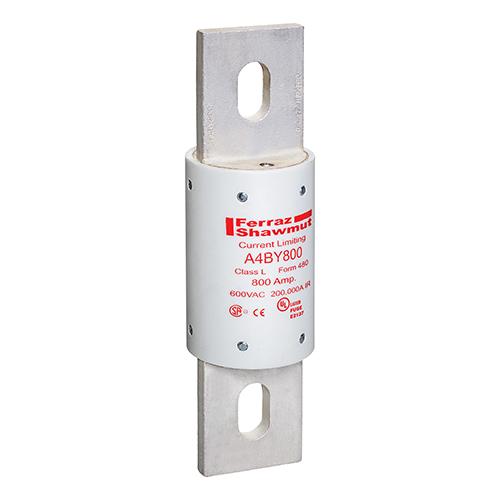

New A4BY800 Mersen Ferraz Shawmut A4BY800 Time Delay Fuse

A4BY800 - Mersen Ferraz Shawmut Current Limiting Fuses

Specifications :
• Manufacturer : Mersen Ferraz Shawmut
• Cat. No. : A4BY800
• Alternate Part No. : A4-BY800
• Product Type : Current Limiting Fuses
• Type : Class L
• 4 Sec Time Delay (At 500 Percent Rated Load) Characteristics
• Voltage Rating : 600 Vac/300 Vdc
• Amperage : 800 Amps
• Interrupting Rating : 200 KiloAmp (Ac) 100 KiloAmp (Dc)
• Blade Terminal
• Diameter : 2-1/2 Inch
• Length 8-5/8 Inch
• Amp-Trap[R] Brand
• A4By Model
• Current Limiting
• Melamine Tube
• Approval Ul 198L Ul 248-10 Csa C22.2
