New BGA24020Y1 Square D BGA24020Y1 2 Pole Circuit Breaker
Regular price
$1,090.00
Sale price
$1,454.00

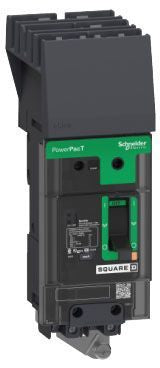

Square D BGA24020Y1 2 Pole Circuit Breaker
Specifications :
• Series: PowerPacT B
• Amperage: 20
• Poles: 2
• Mounting Type: I-Line
• MPN: BGA24020Y1
• Voltage: 480Y/277VAC
• Phase: 1
• Frame Type: BGA
• Connection Type: Plug-In
• Circuit Breaker Type: Standard
• Functions: Long Time and Instantaneous Trip
• Protection: Thermal Magnetic
• For Use With: Electrical Distribution Equipment, Industrial Control Panels
• Application: Distribution, Reverse Fed, Commercial OEM, Industrial and Commercial
• Terminal Connection: Load Side Lug
• Temperature Rating: -25 to 70 °C
• Wire Gauge: AWG 14 to AWG 2/0, Aluminum/Copper
• Min Wire Size: 14 AWG
• Max Wire Size: 2 AWG
• Actuator Type: Toggle
• Color: Gray
• Interrupting Rating: 35kAIC at 480/277VAC, 100kAIC at 240VAC
• Size: 5.39"H x 2.13"W x 3.50"D
• Approval: CE, UL, IEC, CCC, EAC, CSA, NOM, NEMA, IEC
• Standards: RoHS, REACh, HACR
