New LC1D12U7 Square D LC1D12U7 Contactor

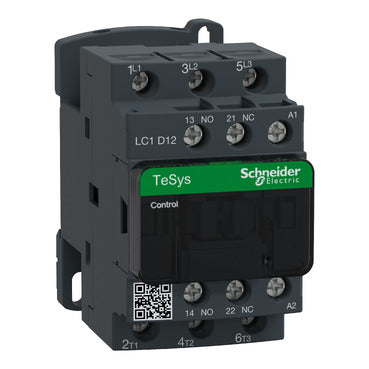

Square D LC1D12U7 Contactor

Specifications :

• Series: TeSys D

• Amperage: 12

• Poles: 3

• Mounting Type: Rail, Plate

• MPN: LC1D12U7

• Voltage: 690VAC, 300VDC

• Phase: 3

• Frame Type: LC1D

• Connection Type: Screw Clamp

• Application: Resistive Load and Motor Control

• Temperature Rating: -5 to 60°C

• Coil Volts: 240VAC at 50/60Hz

• Contact Configuration: 1 NO, 1 NC

• Action: Non-Reversing

• Operating Cycles: 25 to 400

• Size: 3.03"H x 1.77"W x 3.38"D

• Approval: CSA, EN, IEC, UL, BV, LROS, GOST, GL, DNV, RINA, CCC, UKCA

• Standards: RoHS
