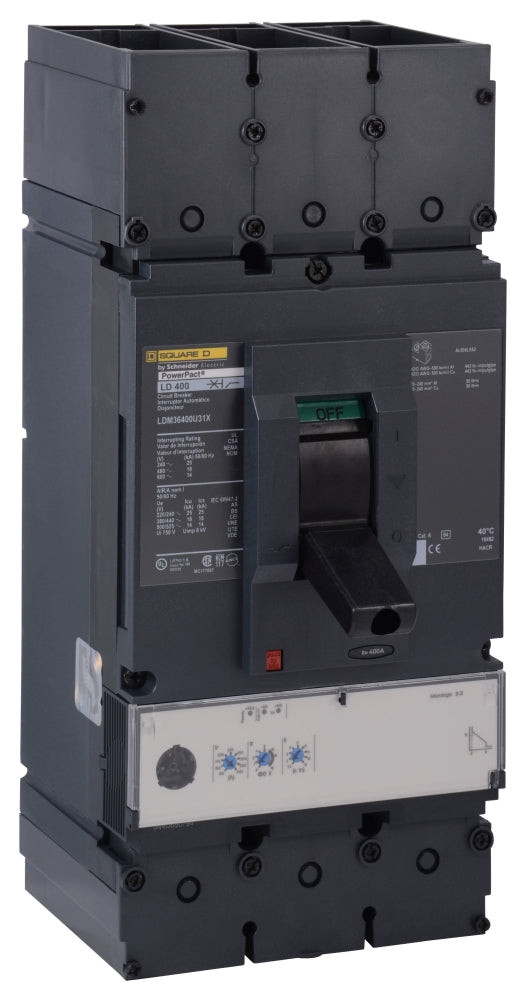

New LJM36400U31X Square D LJM36400U31X 3 Pole Circuit Breaker
Square D LJM36400U31X 3 Pole Circuit Breaker
Specifications :
• Series: LJM
• Amperage: 400
• Poles: 3
• Mounting Type: Unit
• MPN: LJM36400U31X
• Voltage: 600VAC
• Phase: 3
• Frame Type: L
• Connection Type: Bolt-On
• Functions: LI - Long Time and Instantaneous
• Protection: Solid State
• Terminal Connection: Line Side Lug
• Wire Gauge: AWG 2/0 to 500KCmil Aluminum/Copper
• Actuator Type: Toggle
• Color: Black
• Interrupting Rating: 65kA@480V
• Size: 13.39"H x 5.51"W x 4.33"D
• Standards: UL, CSA, NEMA, NOM, IEC, RoHS
