New PDG13C0060TFFJ Eaton PDG13C0060TFFJ 3 Pole Circuit Breaker

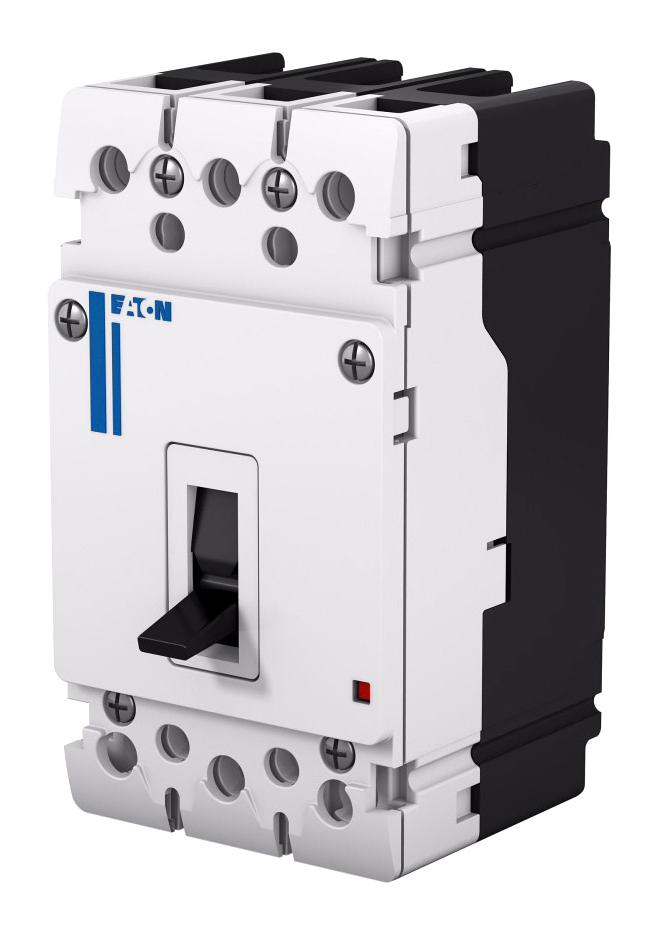

Eaton PDG13C0060TFFJ 3 Pole Circuit Breaker
Specifications :
• Series: PD
• Amperage: 60
• Poles: 3
• Mounting Type: Din Rail
• MPN: PDG13C0060TFFJ
• Voltage: 600VAC, 250VDC
• Phase: 3
• Frame Type: PDG
• Protection: Thermal Magnetic
• Circuit Breaker Type: PD1 Global
• Application: Vehicles: Vocational - On-Road - Utility - Substations, Utility Transmission and Distribution - Mobile Machinery and Equipment - Other Stationary Machinery Equipment in Factory - Robotics - Marine Vessels and Equipment - Electrical Assemblies, Panels and EOEMs - Generation - Renewable Energy - Alternative Energy - Conventional Energy
• Terminal Connection: Line and Load Lug
• Temperature Rating: -4 to 158°F
• Min Wire Size: 14 AWG
• Max Wire Size: 3/0 AWG
• Body Material: Glass Polyester
• Interrupting Rating: 18kAIC at 480VAC
• Size: 4"H x 3"W x 2.99"D
• Approval: IEC, UL, CSA, CCC
• Standards: RoHS
