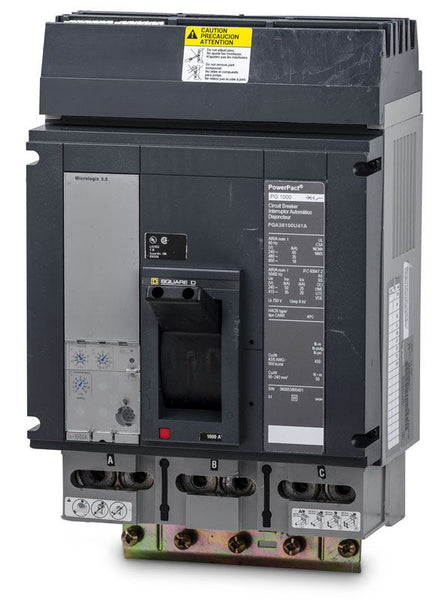

New PGA36100U41A Square D PGA36100U41A 3 Pole Circuit Breaker

Square D PGA36100U41A 3 Pole Circuit Breaker

Specifications :

• Series: PGA

• Amperage: 1000

• Poles: 3

• Mounting Type: Bracket

• MPN: PGA36100U41A

• Voltage: 600VAC

• Phase: 3

• Frame Type: PGA

• Connection Type: I-Line Style Plug-In

• Functions: Long Time and Instantaneous Trip

• Protection: Solid State

• Circuit Breaker Type: SQD

• Application: Residential, Commercial, Industrial

• Terminal Connection: Line-Lugs Load

• Temperature Rating: -2 to 70 °C

• Wire Gauge: AWG 3/0 to 500 KCmil Aluminum/Copper

• Actuator Type: Toggle

• Interrupting Rating: 35kAIC at 480V

• Size: 16.16"H x 8.27"W x 8.05"D

• Approval: UL, CSA, NEMA, IEC, NOM

• Standards: RoHS, HACR
