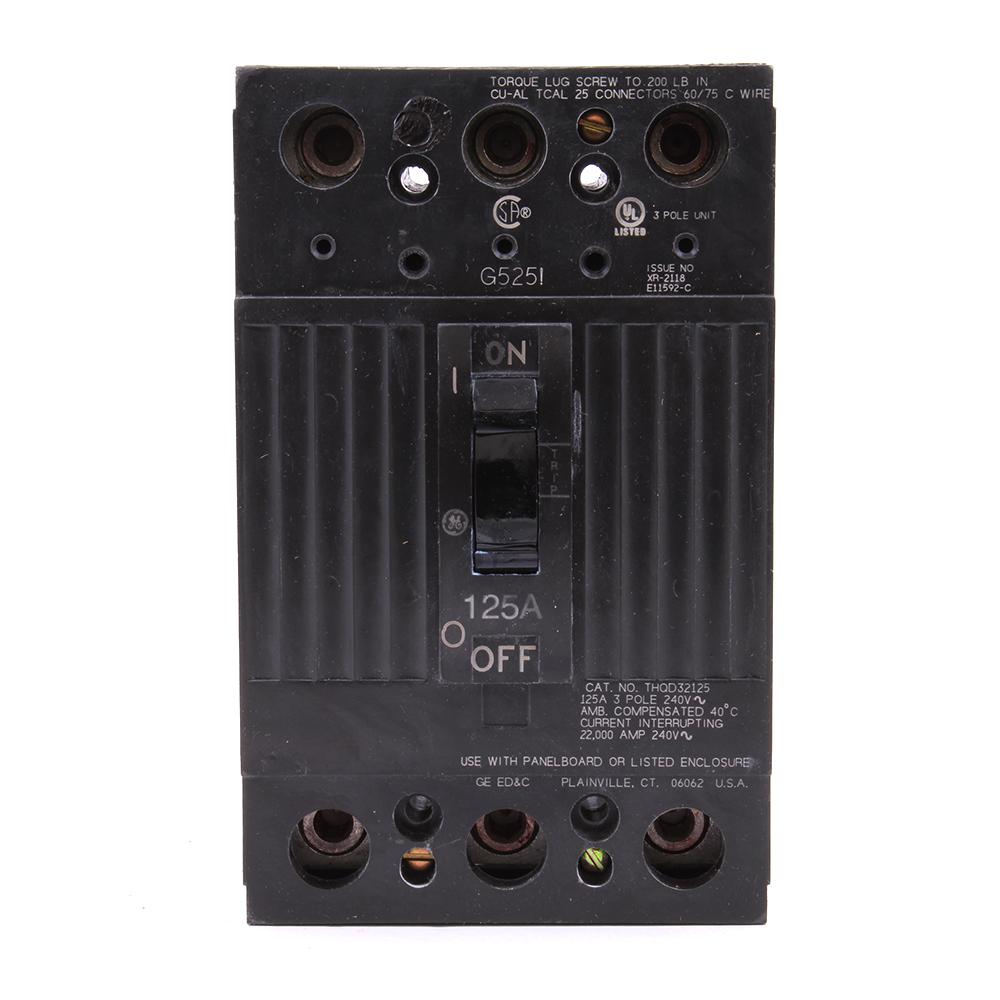

General Electric THQD32125WL 3 Pole Circuit Breaker
Specifications :
• Series: THQD
• Amperage: 125
• Poles: 3
• Mounting Type: Free Standing
• MPN: THQD32125WL
• Voltage: 120/240VAC
• Phase: 3
• Frame Type: TQD
• Connection Type: Feed-Thru
• Functions: Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Circuit Breaker Type: Standard
• For Use With: Lighting Panels, Modular Metering, Motor Control Centers and Panelboards
• Terminal Connection: Line and Load Side Lug
• Temperature Rating: 40 °C
• Actuator Type: Toggle
• Min Wire Size: 4 AWG
• Max Wire Size: 300 MCM
• Interrupting Rating: 14kAIC at 277/480VAC
• Size: 6.56"H x 4.13"W x 2.67"D
• Approval: UL
