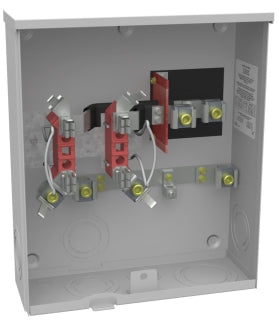

U4413-O-KK-BLG, Commercial Meter Socket
$456.39
- Single Position Meter Socket
- Type Ringless
- Service Type Underground
- Circuit Configuration 1-Phase 3-Wire
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 200 Ampere
- Bypass Switch Type Horn
- Number of Jaws 4
- Hub Type Plain Top
- Knockouts (1) (1/4 Inch - 1/2 Inch), (1) (3/4 Inch - 1 Inch - 1-1/4 Inch - 1-1/2 Inch), (4) (1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch), (1) (2 Inch - 2-1/2 Inch - 3 Inch) Concentric Knockout
- Wire Size 6 AWG to 350 KCMIL (Line/Load)
- Enclosure NEMA 3R
- Mounting Surface
- Enclosure Material Powder Coated G90 Galvanized Steel
- Size 13 Inch W x 4-1/2 Inch D x 15-1/4 Inch H
- Approval UL
- Includes Barrel Lock with Provision Guard
