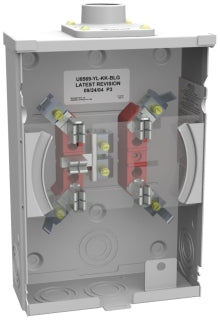

U8569-YL-KK-BLG, Commercial Meter Socket
$279.84
- Single Position Meter Socket
- Type Ringless
- Service Type Overhead
- Circuit Configuration 1-Phase 3-Wire
- Voltage Rating 600 VAC at 60 Hz
- Current Rating 125 Ampere
- Bypass Switch Type Horn
- Number of Jaws 5
- Hub Type 1-1/4 Inch
- Knockouts (2) (3/4 Inch - 1 Inch - 1-1/4 Inch - 1-1/2 Inch) Concentric Knockout, (1) 1/4 Inch, (1) 7/16 Inch Solid Knockout
- Wire Size 6 AWG to 2/0 AWG (Line/Load)
- Enclosure NEMA 3R
- Mounting Surface
- Enclosure Material Powder Coated G90 Galvanized Steel
- Size 8 Inch W x 3-5/16 Inch D x 11-1/2 Inch H
- Approval UL
- Includes Barrel Lock with Provision Guard
